KG510KG510H Down The Hole Drill Rig For Open Use
Jining Dongtai Lite Engineering Machinery Co., Ltd. is one of the leading manufacturers and suppliers of kg510kg510h down the hole drill rig for open use in China. With abundant experience, we warmly welcome you to buy customized kg510kg510h down the hole drill rig for open use made in China here from our factory. Good service and quality products are available.
Product Overview

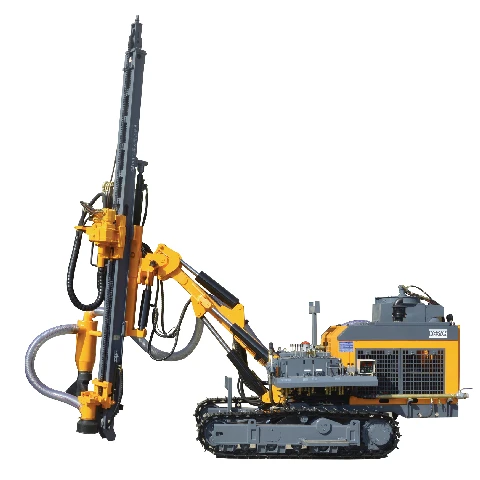

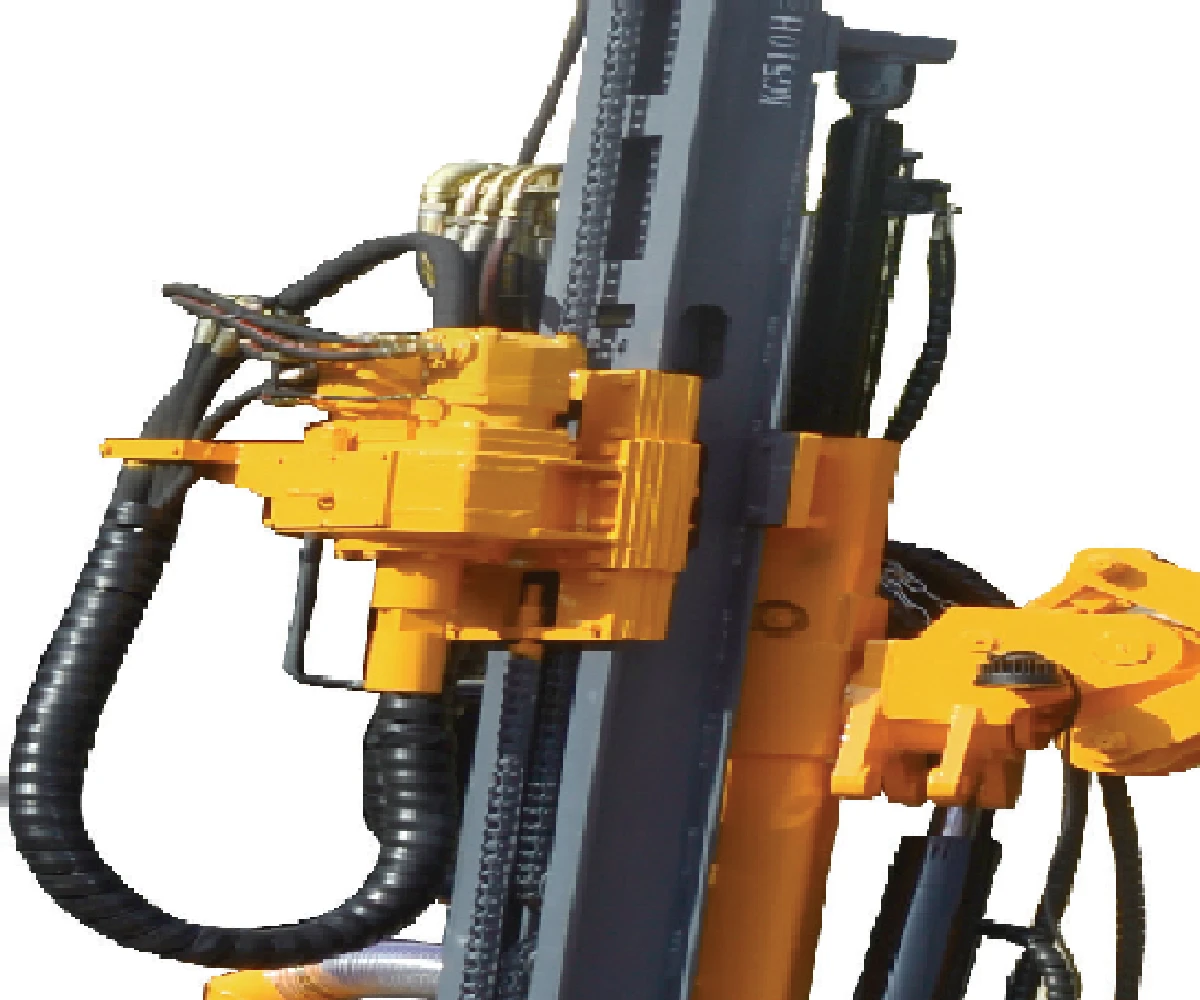

The KG510/KG510H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; and track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The rotary torque and revolving speed are raised; the propulsion motor and chain are used to raise the lifting force and reliability.
The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Designed to excel in demanding surface mining, large-scale quarrying, and civil infrastructure projects, the KG510 / KG510H Down-The-Hole Drill Rig For Open Use represents the gold standard in heavy-duty rock excavation technology. Engineered by leading specialists in large mining and well-drilling machinery, this rig combines a powerful integrated crawler chassis, a high-capacity onboard screw air compressor, and an advanced hydraulic control framework into a single, high-mobility unit.
The KG510 series is specifically optimized to maximize operational productivity while lowering fuel consumption and maintenance costs. Whether you are executing precise blast-hole drilling in hard rock benches or conducting deep geotechnical earthworks, this machine delivers peerless stability, outstanding penetration rates, and maximum operator safety under the most rigorous environmental and climate conditions.
Key Technical Features & Advantages
- Integrated Power System: Features a heavy-duty industrial diesel engine coupled directly with a high-delivery screw air compressor, eliminating external towing requirements and boosting on-site deployment speed.

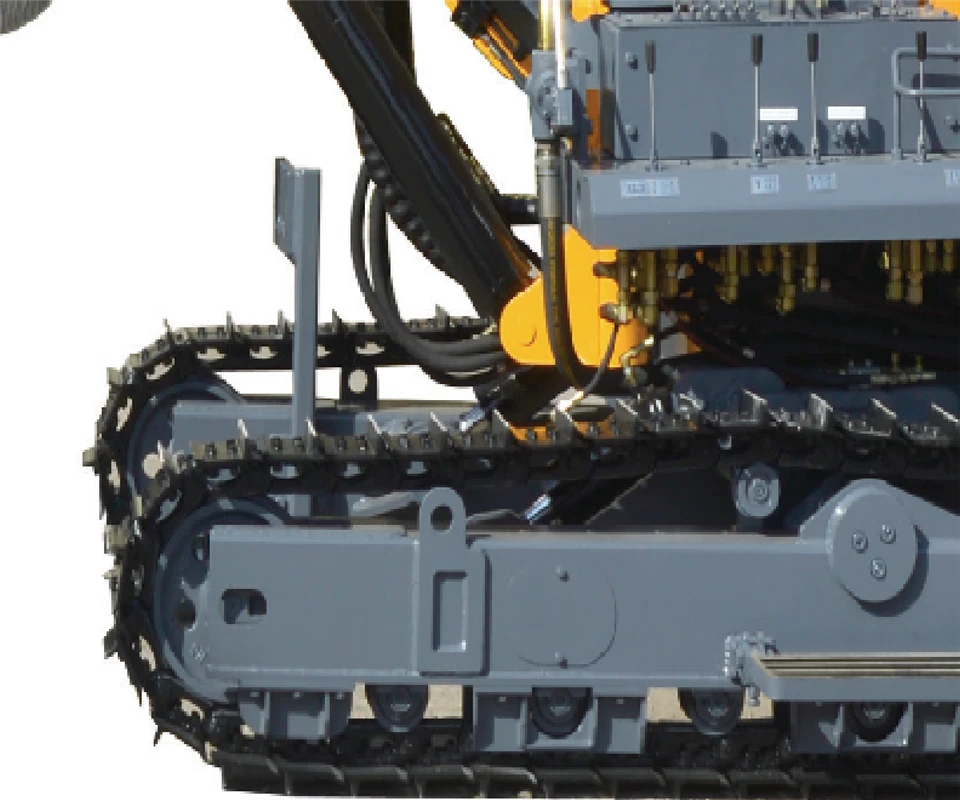

- Enhanced Tramming & Gradeability: Built with a high-torque crawler track mechanism and an automatic track-leveling system, allowing it to navigate rough terrain with up to a $25^\circ$ gradeability angle safely.
- Advanced Dust Suppression: Equipped with an efficient dry dust collection system that significantly reduces airborne silica dust, ensuring compliance with environmental standards and improving site visibility.

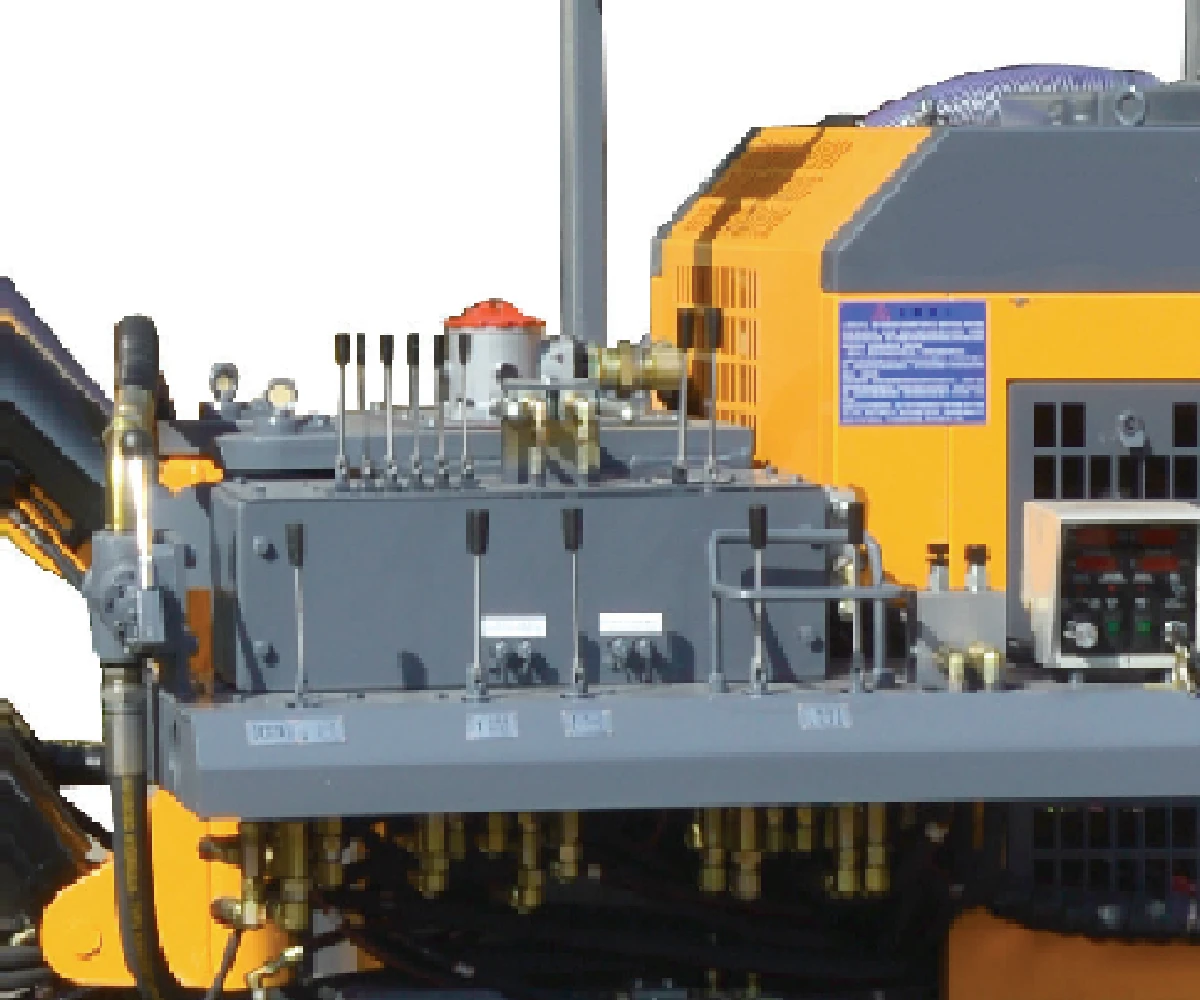

- Ergonomic Control Console: Centralized operational layouts reduce operator fatigue, featuring intuitive switches for feed pressure, rotation speed, and rod-handling automation.
- Versatile Downhole Compatibility: Engineered to support a broad array of pneumatic tools, including seamless pairing with a high-efficiency Water well drilling rig impactor when transitioning into deep hydrogeological drilling or water source exploration projects.

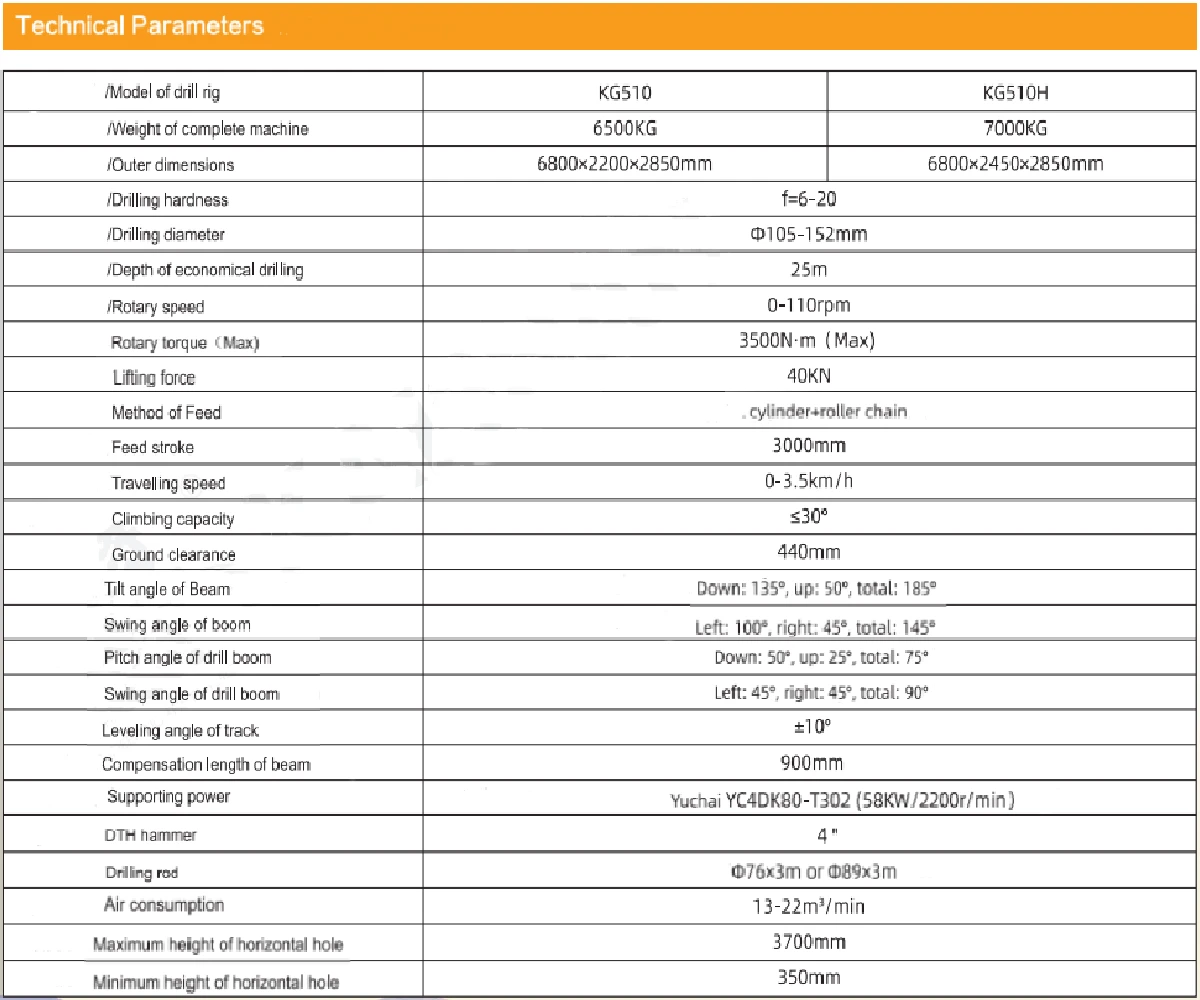

Technical Specifications
Frequently Asked Questions (FAQ)
Q: 1. What is the primary difference between the standard KG510 and the KG510H models?
A: The KG510H typically incorporates enhanced dust-collection capabilities or upgraded tramming configurations suited for dusty, highly demanding open-pit environments, while both share the same robust core chassis and drilling depth capacity.
Q: 2. What is the recommended hole diameter range for this drill rig?
A: The KG510 series is optimized for hole diameters ranging from $105 \text{ mm}$ to $152 \text{ mm}$, making it exceptionally versatile for standard bench blasting patterns in mining and quarry applications.

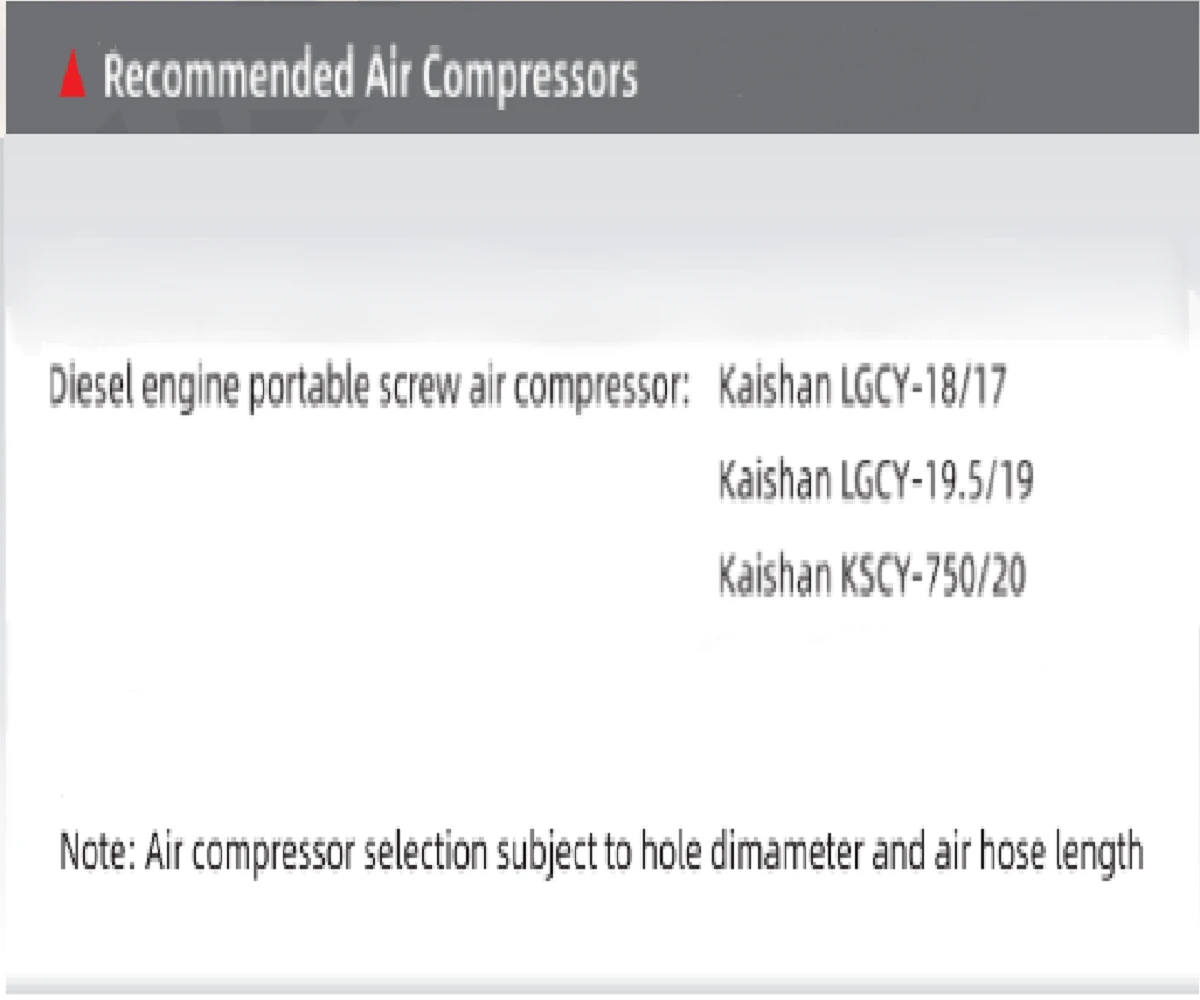

Q: 3. How does the integrated compressor impact on-site efficiency?

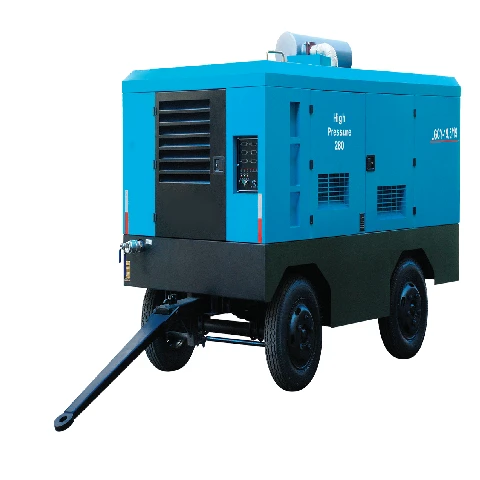

A: Having the screw air compressor mounted directly on the crawler chassis eliminates the need to tow an external compressor and long hoses. This cuts setup and relocation time between holes down to minutes, allowing a single operator to move and drill rapidly.
Q: 4. What routine maintenance is required to ensure long service life?
A: Routine maintenance includes checking engine and compressor fluid levels, inspecting hydraulic lines for wear, cleaning dust collector filter elements regularly, and adequately lubricating the drill string and the internal Water well drilling rig impactor components to protect against heavy percussive shock.
Q: 5. What kind of after-sales and spare parts support do you provide?
A: We offer comprehensive global technical support, including detailed operation manuals, video maintenance guides, and a complete stock of original wear parts-such as drill bits, drill pipes, and impactors-shipped directly to ensure minimal project downtime.
